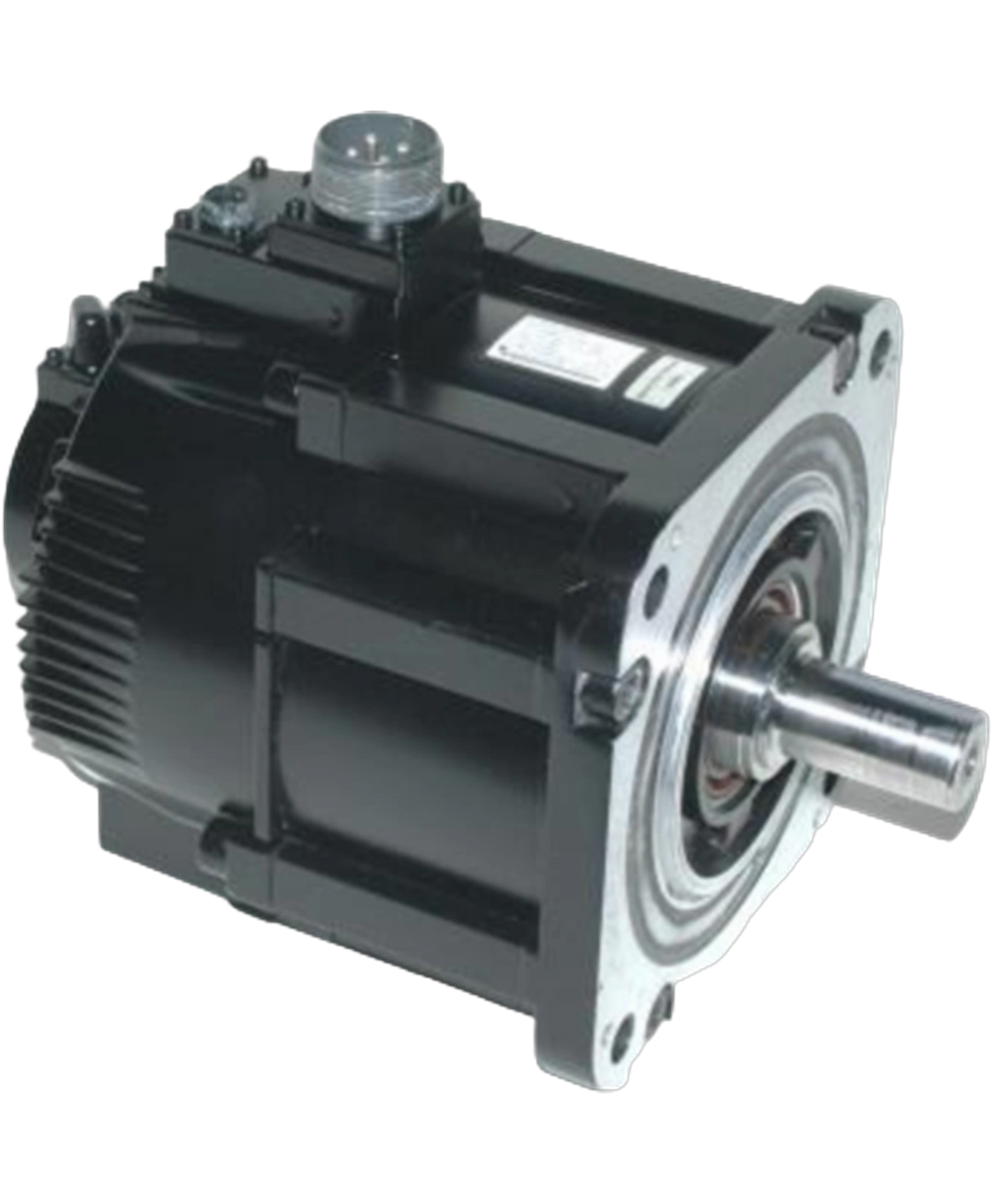

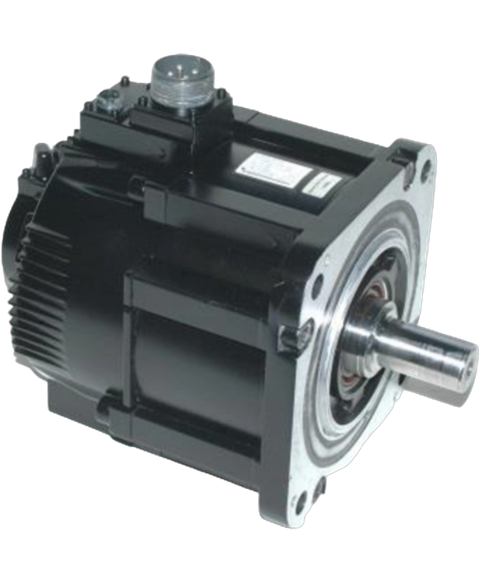

Yaskawa SGMRV-37ANA-YR12
The Yaskawa SGMRV-37ANA-YR12 is a rotary servo motor engineered for high-torque applications requiring precise control. Its rated output of 3.7 kW delivers robust performance, making it suited for demanding uses.
Brand New - 12 Months Warranty
$2,162.65
(inc. GST)
In Stock
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGMRV-37ANA-YR12 |
| Weight | 5.00 lbs (2.27 kg) |
| Name of Module | Servo Motor |
| Rated Output | 3.7 kW |
| Rated Torque | 23.5 Nm |
| Peak Torque | 27 Nm |
| Rated Speed | 1500 RPM |
| Max Speed | 4200 RPM |
| Rotary Inertia (absolute encoder with battery) | 57 x 10^-4 kg-m² |
| Rotary Inertia (battery-less absolute encoder) | 57 x 10^-4 kg-m² |
| Voltage | 200 VAC |
| Servo Motor Type | Rotary Servo Motor |
| Classification | High Inertia, High Torque |
| Brand | Yaskawa |
