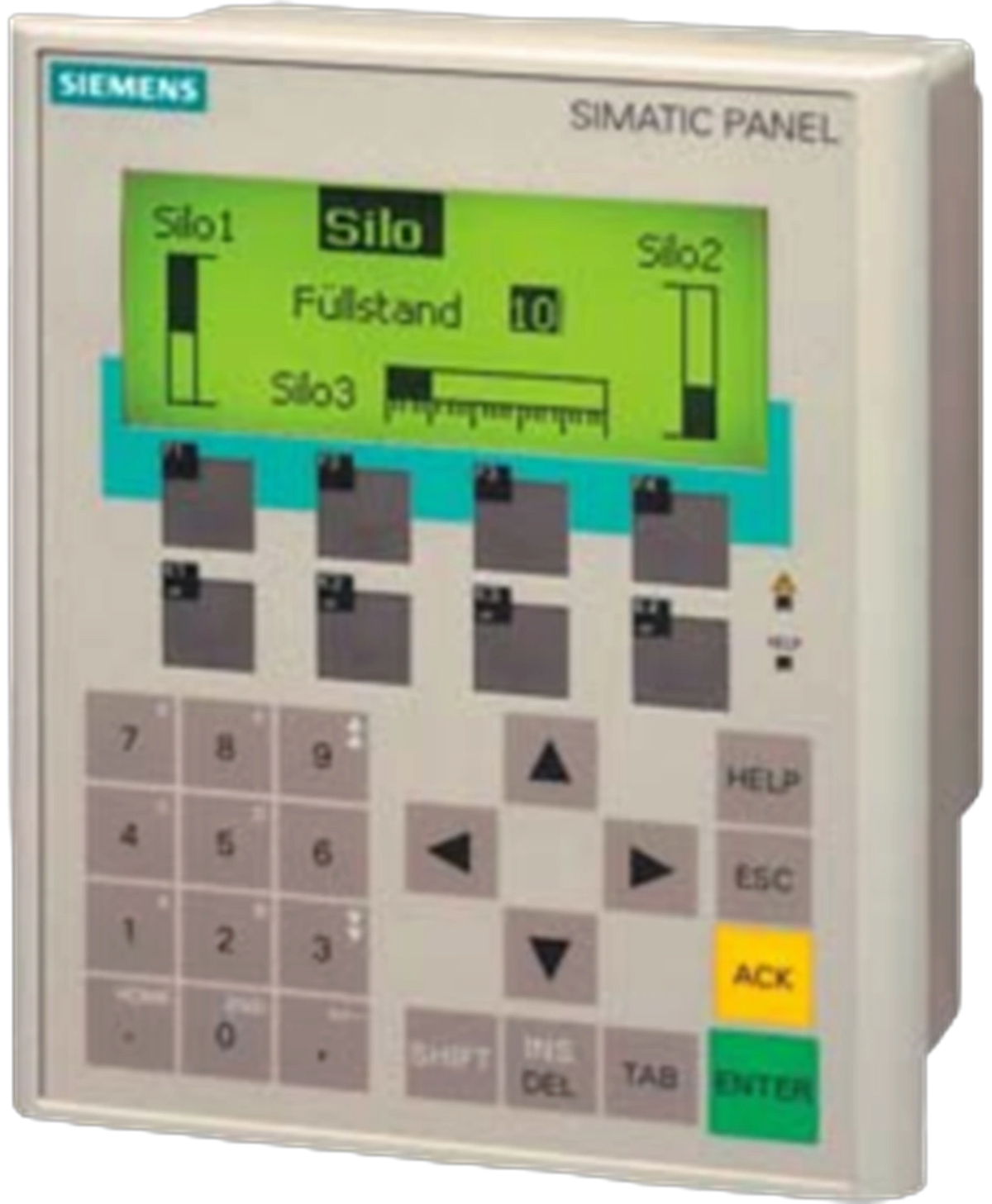

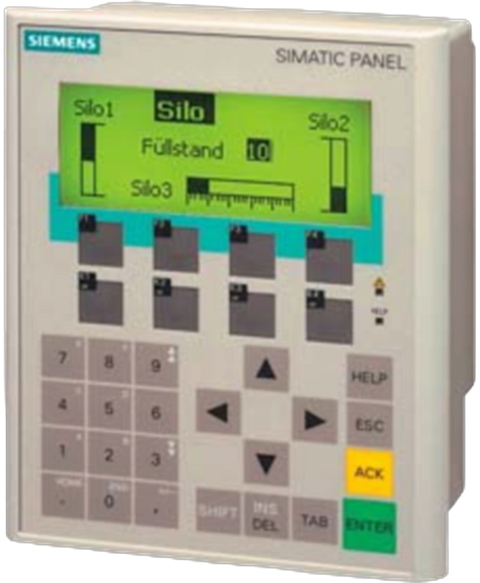

Product image for illustrative purposes only. Actual item may vary.
Siemens 6AV6 641-0CA01-0AX1
Siemens 6AV6641-0CA01-0AX1 operator panel.
Brand New - 12 Months Warranty
$2,023.49
(inc. GST)
In Stock
| Product type designation | OP 77B |
| Customer-specific configuration | No |
| Design of display | STN |
| Screen diagonal | 4.5 in |
| Color display | No |
| Number of colors | 2; Black/white |
| Horizontal image resolution | 160 pixel |
| Vertical image resolution | 64 pixel |
| MTBF backlighting (at 25 °C) | 100 000 h |
| Control elements | Membrane keyboard |
| — user-definable label membrane keys | Yes |
| Function keys | Yes |
| — Number of function keys | 8 |
| — Number of function keys with LEDs | 4 |
| System keys | Yes |
| — Number of system keys | 23 |
| Numeric keyboard | Yes |
| alphanumeric keyboard | Yes |
| hexadecimal keyboard | Yes |
| Multi-key operation | Yes |
| Design as touch screen | No; without |
| Type of connection for mouse/keyboard/barcode reader | - / - / - |
| Mounting position | vertical |
| maximum permissible angle of inclination without external ventilation | 80° |
| Type of supply voltage | DC |
| Current consumption (rated value) | 0.2 A |
| Starting current inrush I²t | 0.5 A²·s |
| Processor type | ARM |
| Type of memory | Flash / RAM |
| Memory available for user data | 1 000 kbyte |
| Info LED | Yes |
| Power LED | No |
| Error LED | No |
| Type | Software clock, no battery backup |
| retentive | No |
| synchronizable | No |
| Interfaces/bus type | 1x RS 232, 1x RS 422, 1x RS 485 (max. 12 Mbit/s) |
| Number of industrial Ethernet interfaces | 0 |
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 1 |
| Number of USB interfaces | 1 |
| Multimedia card/SD card slot | combined |
| With software interfaces | No |
| Supports protocol for PROFINET IO | No |
| PROFIsafe | No |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| TCP/IP | No |
| MODBUS | Yes |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) | NEMA 4x, NEMA 12 (when installed) |
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes |
| EAC (formerly Gost-R) | No |
| Suitable for safety functions | No |
| ATEX Zone 2 | No; certificate no longer available as of 1 October 2020 |
| ATEX Zone 22 | No; certificate no longer available as of 1 October 2020 |
| FM Class I Division 2 | Yes |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (Class NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| min. | 0 °C-20 °C |
| max. | 50 °C60 °C |
| Operation, max. | 90 % |
| pre-installed operating system | Windows CE |
| Message indicator | YesNo |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration tool | WinCC flexible Compact Version 2004 or higher (to be ordered separately) |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | Yes |
| WinCC flexible Standard | Yes |
| WinCC flexible Advanced | Yes |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes |
| WinCC Advanced (TIA Portal) | Yes |
| WinCC Professional (TIA Portal) | Yes |
| Number of online/runtime languages | 5 |
| Languages per project | 32 |
| Libraries | Yes |
| Task planner | Yes |
| Help system | Yes |
| Number of characters per info text | 320 |
| Number of alarm classes | 32 |
| Number of messages | 1 000 |
| Bit messages | Yes |
| — Number of bit messages | 1 000 |
| Analog messages | Yes |
| — Number of analog messages | 1 000 |
| Telegram message procedure Alarm S | Yes |
| System messages HMI | Yes |
| System messages PLC | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | No |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| acoustic feedback | No |
| First/last value | Yes |
| Number of recipes | 100 |
| Data records per recipe | 200 |
| Entries per data record | 200 |
| Recipe memory | 32 KB integrated Flash, expandable |
| Number of variables per device | 1 000 |
| Number of variables per screen | 30 |
| Limit values | Yes |
| Multiplexing | Yes |
| Number of configurable images | 500 |
| Permanent window/default | Yes |
| Start screen configurable | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Text objects | 2 500 text elements |
| Number of I/O fields per image | 30 |
| Number of date/time fields | 0 |
| Index of screen context | No |
| Return | Yes |
| Graphics object | Bit maps, icons, icon (full-screen) |
| — Icons | 1 000 |
| — Icon (full screen) | 100 |
| dynamic objects | Bar graphs |
| — Number of bars per chart | 5 |
| — Number of analog indicators per image | 0 |
| Limit value lines | Yes |
| Number of alphanumerical fields | 1 000 |
| — alphanumeric fields per image | 30 |
| Number of numerical fields | 1 000 |
| — numerical fields per image | 30 |
| Number of password fields | 0 |
| — visible switches per image | 0 |
| — hidden switches per image | 0 |
| — Number of status switches per image | 0 |
| — Selector switches per image | 0 |
| — Decade switches per image | 0 |
| — Signal lamps per image | 0 |
| Color change | Yes |
| X/Y movement | No |
| Hide | Yes |
| Angle of rotation | No |
| Number of text lists per project | 300 |
| Number of graphics lists per project | 0 |
| Number of graphic lists per image | 0 |
| Number of entries per graphics list | 0 |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Password export/import | Yes |
| Recording/Printing | Alarms, report (shift report), hardcopy |
| Transfer of configuration | MPI/PROFIBUS DP, serial, USB, by means of external storage medium, automatic transfer recognition |
| Connection to controller | S5, S7-200, S7-300/400, TI 505, Win AC, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus), further non-Siemens drivers, see chapter "System interfaces" |
| S7-200 | Yes |
| — PPI (point-to-point) | Yes |
| — PPI network | Yes |
| — MPI | Yes |
| — PROFIBUS DP | Yes |
| — Ethernet | No |
| S7-300/400 | Yes |
| — PROFINET | No |
| S5 | Yes |
| — serial | Yes |
| TI 505 | Yes |
| Allen Bradley (DF1) | Yes |
| Allen Bradley (DF485) | Yes |
| Mitsubishi (FX) | Yes |
| Mitsubishi (MP4) | Yes |
| Telemecanique (ADJUST) | No |
| Telemecanique (Uni-Telway) | Yes; Only in combination with WinCC flexible |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus) | Yes |
| GE-Fanuc (SNP) | Yes |
| Key repeat | Yes |
| TAB sequence | Yes |
| Calculating functions | Yes |
| Animate | Yes |
| Menu tree editor | Yes |
| Unit switchover | No |
| Clean screen | No |
| Touch calibration | No |
| Backup/Restore manually | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Delta transfer | Yes |
| Monitoring function for battery and memory | No |
| Trace (operation archive) | No |
| Open Platform Program | No |
| Peripherals | Printer |
| SIMATIC HMI MM memory card: Multi Media Card | Yes |
| Additional software components loadable | Yes |
| Width of the housing front | 150 mm |
| Height of housing front | 186 mm |
| Mounting cutout, width | 135 mm |
| Mounting cutout, height | 171 mm |
| mounting depth | 38.5 mm |
| Weight (without packaging) | 0.5 kg |
| free hotline | Yes |
