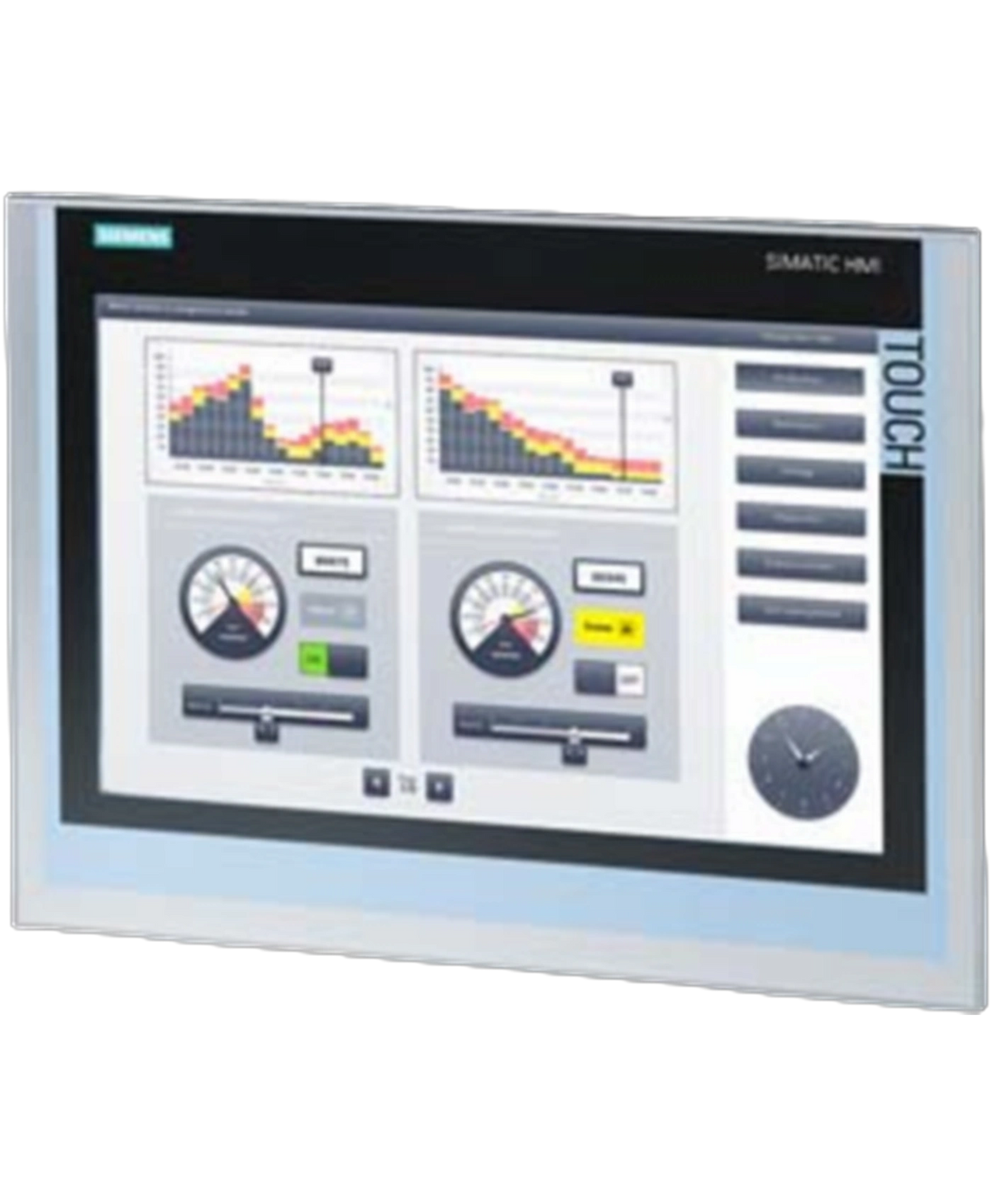

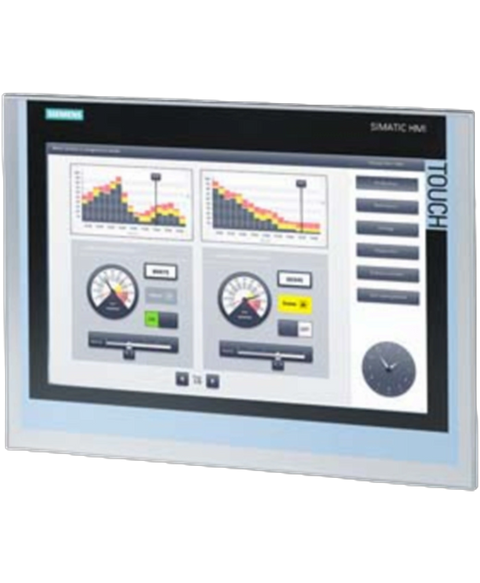

Siemens 6AV21240QC020AX0
SIMATIC HMI TP1500 Comfort, Comfort Panel, touch operation, 15 widescreen TFT display, 16 million colors, PROFINET interface, MPI,PROFIBUS DP interface, 24 MB configuration memory, Windows CE 6.0, configurable as of WinCC Comfort V11 SP2, successor: 6AV2124-0QC02-0AX1 configurable from V14 SP1
Brand New - 12 Months Warranty
$4,856.39
(inc. GST)
In Stock
| Product type designation | TP1500 Comfort |
| Design of display | TFT |
| Screen diagonal | 15.4 in |
| Display width | 331.2 mm |
| Display height | 207 mm |
| Number of colors | 16 777 216 |
| Horizontal image resolution | 1 280 pixel |
| Vertical image resolution | 800 pixel |
| MTBF backlighting (at 25 °C) | 80 000 h |
| Backlight dimmable | Yes; 0-100 % |
| — Number of function keys | 0 |
| — Number of function keys with LEDs | 0 |
| Keys with LED | No |
| System keys | No |
| Numeric keyboard | Yes |
| alphanumeric keyboard | Yes |
| Design as touch screen | Yes; Analog-resistive |
| Direct keys (touch buttons as S7 input I/O) | 40 |
| Mounting position | vertical |
| Wall mounting/direct mounting | No |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 1.5 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 36 W |
| Processor type | X86 |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 24 Mbyte |
| Info LED | No |
| Power LED | No |
| Error LED | No |
| Buzzer | No |
| Speaker | Yes |
| Hardware clock (real-time) | Yes |
| Software clock | Yes |
| retentive | Yes; Back-up duration typically 6 weeks |
| synchronizable | Yes |
| Number of industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 0; together with RS 485 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| USB Mini B | 1; 5-pole |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 2 |
| With software interfaces | No |
| Industrial Ethernet status LED | 3 |
| Number of ports of the integrated switch | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | Yes |
| IRT | Yes; As of WinCC V12 |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| MPI | Yes |
| TCP/IP | Yes |
| DHCP | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| HTML | Yes |
| XML | Yes |
| CSS | Yes |
| Active X | Yes |
| JavaScript | Yes |
| Java VM | No |
| — MRP | Yes |
| CAN | No |
| MODBUS | Yes |
| Diagnostic information readable | Yes; S7 controller |
| Limit class A, for use in industrial areas | Yes |
| Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Enclosure Type 4 at the front | Yes |
| Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| ATEX Zone 2 | No |
| ATEX Zone 22 | No |
| IECEx Zone 2 | No |
| IECEx Zone 22 | No |
| cULus Class I Zone 1 | No |
| cULus Class I Zone 2, Division 2 | Yes |
| FM Class I Division 2 | Yes |
| Germanischer Lloyd (GL) | No |
| American Bureau of Shipping (ABS) | No |
| Bureau Veritas (BV) | No |
| Det Norske Veritas (DNV) | No |
| Lloyds Register of Shipping (LRS) | No |
| Nippon Kaiji Kyokai (Class NK) | No |
| Polski Rejestr Statkow (PRS) | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 50 °C; (55 °C, see entry ID: 64847814)40 °C |
| — At maximum tilt angle, min. | 0 °C |
| — At maximum tilt angle, max. | 40 °C |
| min. | -20 °C |
| max. | 60 °C |
| Operation, max. | 90 %; no condensation |
| proprietary | No |
| Windows CE | Yes |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | No |
| WinCC flexible Standard | No |
| WinCC flexible Advanced | No |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes; V11 SP2 or higher |
| WinCC Advanced (TIA Portal) | Yes; V11 SP2 or higher |
| WinCC Professional (TIA Portal) | Yes; V11 SP2 or higher |
| Number of online/runtime languages | 32 |
| Languages per project | 32 |
| Libraries | Yes |
| Web browser | Yes |
| Pocket Word | Yes |
| Pocket Excel | Yes |
| PDF Viewer | Yes |
| Media Player | Yes |
| SIMATIC WinCC Sm@rtServer | Yes |
| SIMATIC WinCC Audit | Yes |
| Number of Visual Basic Scripts | Yes |
| time-controlled | Yes |
| task-controlled | Yes |
| Number of characters per info text | 320 |
| Number of alarm classes | 32 |
| — Number of bit messages | 6 000 |
| — Number of analog messages | 200 |
| S7 alarm number procedure | Yes |
| System messages HMI | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| — Number of entries | 1 024 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| Number of recipes | 500 |
| Data records per recipe | 1 000 |
| Entries per data record | 2 000 |
| Size of internal recipe memory | 4 Mbyte |
| Recipe memory expandable | Yes |
| Number of variables per device | 4 096 |
| Number of variables per screen | 400 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | Yes |
| Arrays | Yes |
| Number of configurable images | 750 |
| Permanent window/default | Yes |
| Global image | Yes |
| Pop-up images | Yes |
| Slide-in images | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Number of objects per image | 600 |
| Text fields | Yes |
| I/O fields | Yes |
| Graphic I/O fields (graphics list) | Yes |
| Symbolic I/O fields (text list) | Yes |
| Date/time fields | Yes |
| Switches | Yes |
| Buttons | Yes |
| Graphic display | Yes |
| Icons | Yes |
| Geometric objects | Yes |
| Number of complex objects per screen | 40 |
| Alarm view | Yes |
| Trend view | Yes |
| User view | Yes |
| Status/control | Yes |
| Sm@rtClient view | Yes |
| Recipe view | Yes |
| f(x) trend view | Yes |
| System diagnostics view | Yes |
| HTML browser | Yes |
| PDF display | Yes |
| IP camera display | Yes |
| Bar graphs | Yes |
| Sliders | Yes |
| Pointer instruments | Yes |
| Analog/digital clock | Yes |
| Number of text lists per project | 500 |
| Number of entries per text list | 500 |
| Number of graphics lists per project | 500 |
| Number of entries per graphics list | 500 |
| Number of archives per device | 50 |
| Number of entries per archive | 50 000 |
| Message archive | Yes |
| Process value archive | Yes |
| — Sequential archive | Yes |
| — Short-term archive | Yes |
| — Memory card | Yes |
| — USB memory | Yes |
| — Ethernet | Yes |
| — CSV | Yes |
| — TXT | Yes |
| — RDB | Yes |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Number of users | 50 |
| Password export/import | Yes |
| SIMATIC Logon | Yes |
| Alarms | Yes |
| Report (shift log) | Yes |
| Hardcopy | Yes |
| Electronic print to file | Yes; PDF, HTML |
| — US English | Yes |
| MPI/PROFIBUS DP | Yes |
| USB | Yes |
| Ethernet | Yes |
| using external storage medium | Yes |
| S7-1200 | Yes |
| S7-1500 | Yes |
| S7-200 | Yes |
| S7-300/400 | Yes |
| LOGO! | Yes |
| WinAC | Yes |
| SINUMERIK | Yes; with SINUMERIK option package |
| SIMOTION | Yes |
| Allen Bradley (EtherNet/IP) | Yes |
| Allen Bradley (DF1) | Yes |
| Mitsubishi (MC TCP/IP) | Yes |
| Mitsubishi (FX) | Yes |
| OMRON (FINS TCP) | No |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus TCP/IP) | Yes |
| Modicon (Modbus) | Yes |
| OPC UA Client | Yes |
| OPC UA Server | Yes |
| Backup/Restore manually | Yes |
| Backup/Restore automatically | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Printer | Yes |
| SIMATIC HMI MM memory card: Multi Media Card | Yes; Up to 128 MB |
| SIMATIC HMI SD memory card: Secure Digital memory card | Yes; Up to 2 GB |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes; Up to 16 GB |
| SIMATIC HMI USB stick | Yes; Up to 8 GB |
| Network camera | Yes |
| Plastic | No |
| Aluminum | Yes |
| Stainless steel | No |
| Width of the housing front | 415 mm |
| Height of housing front | 310 mm |
| Mounting cutout, width | 396 mm |
| Mounting cutout, height | 291 mm |
| mounting depth | 75 mm |
| Weight (without packaging) | 5.2 kg |
