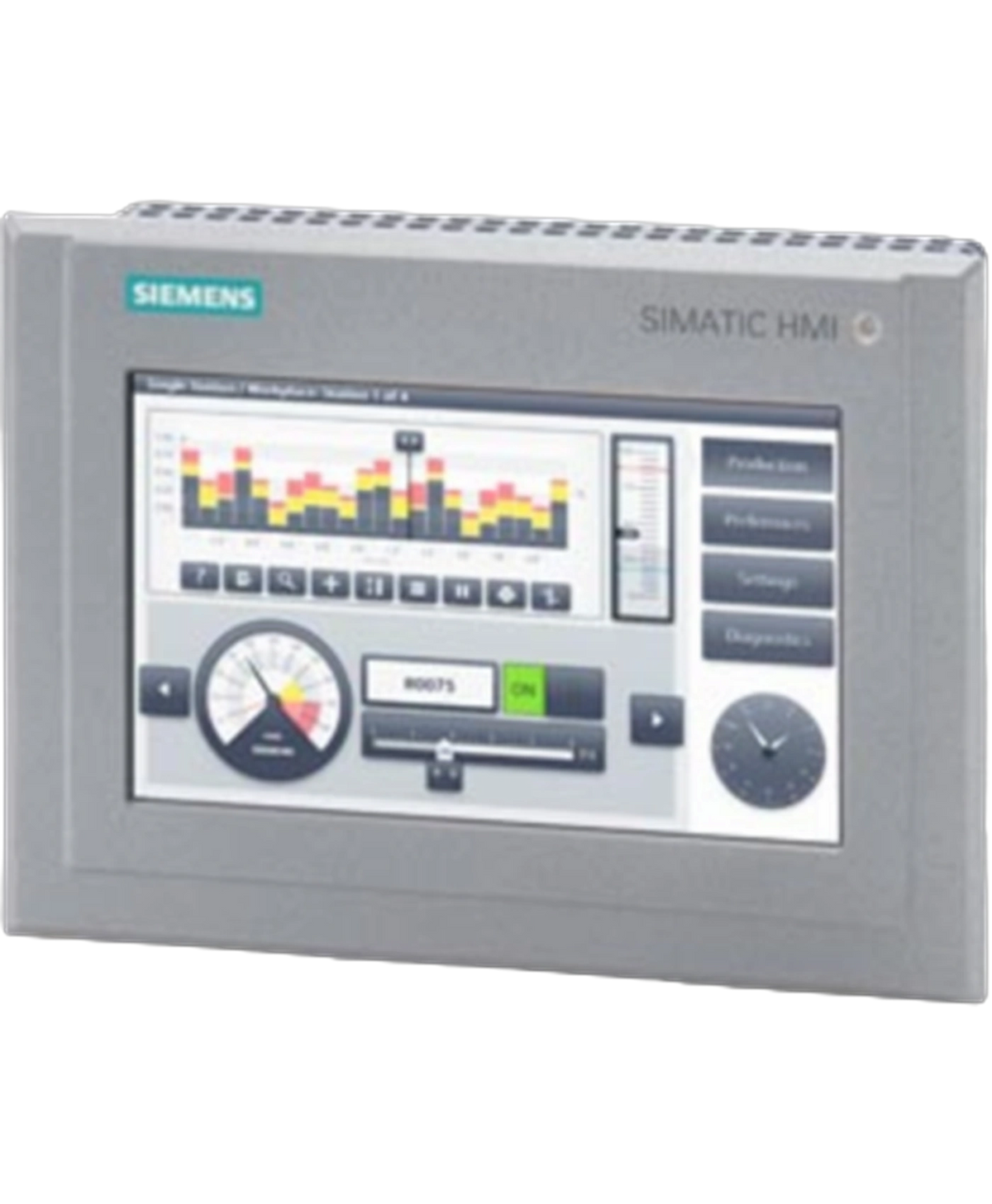

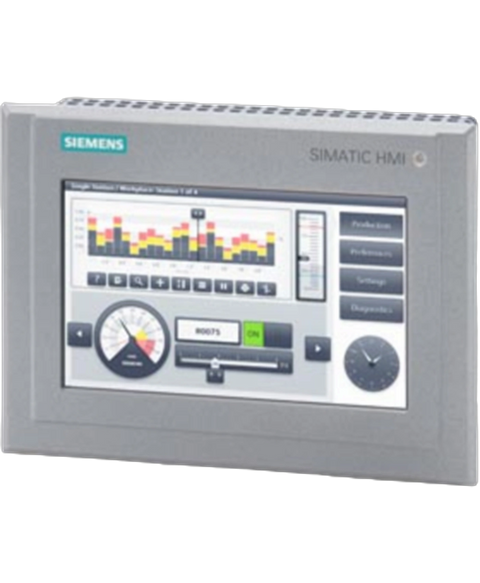

Product image for illustrative purposes only. Actual item may vary.
Siemens 6AV21240GC130AX0
SIMATIC HMI TP700 Comfort Outdoor, Comfort Panel, touch operation, 7 widescreen TFT display, 16 million colors, PROFINET interface, MPI,PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft support including security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP
Brand New - 12 Months Warranty
$2,793.13
(inc. GST)
In Stock
| Product type designation | TP700 Comfort Outdoor |
| Design of display | TFT, bonded, daylight-readable |
| Screen diagonal | 7 in |
| Display width | 152.4 mm |
| Display height | 91.4 mm |
| Number of colors | 16 777 216 |
| Horizontal image resolution | 800 pixel |
| Vertical image resolution | 480 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h |
| Backlight dimmable | Yes; LED, can be dimmed manually or automatically |
| — Number of function keys | 0 |
| — Number of function keys with LEDs | 0 |
| Keys with LED | No |
| System keys | No |
| Numeric keyboard | Yes; Onscreen keyboard |
| alphanumeric keyboard | Yes; Onscreen keyboard |
| Design as touch screen | Yes; Analog-resistive |
| — F1...Fx | 0 |
| Direct keys (touch buttons as S7 input I/O) | 32 |
| Mounting position | vertical |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 0.7 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 17 W |
| Processor type | X86 |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 12 Mbyte |
| Info LED | No |
| Power LED | No |
| Error LED | No |
| Buzzer | No |
| Speaker | Yes |
| Hardware clock (real-time) | Yes |
| Software clock | No |
| retentive | Yes; Back-up duration typically 6 weeks |
| synchronizable | Yes |
| Number of industrial Ethernet interfaces | 2 |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 1 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| USB Mini B | 1; 5-pole |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 2 |
| With software interfaces | No |
| Industrial Ethernet status LED | 2 |
| Number of ports of the integrated switch | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | Yes |
| IRT | Yes; WinCC V13 SP1 HSP or higher |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| MPI | Yes |
| TCP/IP | Yes |
| DHCP | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| HTTP | Yes |
| HTTPS | No |
| HTML | Yes |
| XML | No |
| CSS | Yes |
| Active X | No |
| JavaScript | Yes |
| Java VM | No |
| — MRP | Yes; WinCC V13 SP1 HSP or higher |
| CAN | No |
| MODBUS | Yes |
| Limit class A, for use in industrial areas | Yes |
| Limit class B, for use in residential areas | No |
| IP (at the front) | IP66 |
| IP (rear) | IP20 |
| Enclosure Type 4 at the front | Yes |
| Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| ATEX Zone 2 | Yes; for inscription on device rating plate |
| ATEX Zone 22 | Yes; for inscription on device rating plate |
| IECEx Zone 2 | Yes; for inscription on device rating plate |
| IECEx Zone 22 | Yes; for inscription on device rating plate |
| cULus Class I Zone 1 | No |
| cULus Class I Zone 2, Division 2 | Yes; for inscription on device rating plate |
| FM Class I Division 2 | Yes; for inscription on device rating plate |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Korean Register of Shipping (KRS) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (Class NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| Chinese Classification Society (CCS) | Yes |
| Compass working clearance | 5 m |
| Suited for indoor use | Yes |
| Suited for outdoor use | Yes; Powder-coated, UV resistant |
| — For vertical installation, min. | -30 °C |
| — For vertical installation, max. | 60 °C; (55 °C, see entry ID: 64847814)50 °C |
| — At maximum tilt angle, min. | -30 °C |
| — At maximum tilt angle, max. | 50 °C45 °C |
| min. | -30 °C |
| max. | 70 °C |
| Installation altitude above sea level, max. | 3 000 m; Depending on the operating temperature |
| Operation, max. | 90 %; no condensation |
| proprietary | No |
| Windows CE | Yes |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | No |
| WinCC flexible Standard | No |
| WinCC flexible Advanced | No |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes; WinCC V13 SP1 Update 7 + HSP or higher |
| WinCC Advanced (TIA Portal) | Yes; WinCC V13 SP1 Update 7 + HSP or higher |
| WinCC Professional (TIA Portal) | Yes; WinCC V13 SP1 Update 7 + HSP or higher |
| Number of online/runtime languages | 32 |
| Languages per project | 32 |
| Libraries | Yes |
| Web browser | Yes |
| Pocket Word | Yes |
| Pocket Excel | Yes |
| PDF Viewer | Yes |
| Media Player | Yes |
| SIMATIC WinCC Sm@rtServer | Yes |
| SIMATIC WinCC Audit | Yes |
| Number of Visual Basic Scripts | Yes |
| time-controlled | Yes |
| task-controlled | Yes |
| Number of characters per info text | 70 |
| Number of alarm classes | 32 |
| — Number of bit messages | 4 000 |
| — Number of analog messages | 200 |
| S7 alarm number procedure | Yes |
| System messages HMI | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| — Number of entries | 1 024 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| Number of recipes | 300 |
| Data records per recipe | 500 |
| Entries per data record | 1 000 |
| Size of internal recipe memory | 2 Mbyte |
| Recipe memory expandable | Yes |
| Number of variables per device | 2 048 |
| Number of variables per screen | 400 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | Yes |
| Arrays | Yes |
| Number of configurable images | 500 |
| Permanent window/default | Yes |
| Global image | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Number of objects per image | 400 |
| Text fields | Yes |
| I/O fields | Yes |
| Graphic I/O fields (graphics list) | Yes |
| Symbolic I/O fields (text list) | Yes |
| Date/time fields | Yes |
| Switches | Yes |
| Buttons | Yes |
| Graphic display | Yes |
| Icons | Yes |
| Geometric objects | Yes |
| Number of complex objects per screen | 20 |
| Alarm view | Yes |
| Trend view | Yes |
| User view | Yes |
| Status/control | Yes |
| Sm@rtClient view | Yes |
| Recipe view | Yes |
| f(x) trend view | Yes |
| System diagnostics view | Yes |
| HTML browser | Yes |
| PDF display | Yes |
| IP camera display | Yes; Webcam type see FAQs |
| Bar graphs | Yes |
| Sliders | Yes |
| Pointer instruments | Yes |
| Analog/digital clock | Yes |
| Number of text lists per project | 500 |
| Number of entries per text list | 500 |
| Number of graphics lists per project | 500 |
| Number of entries per graphics list | 500 |
| Number of archives per device | 50 |
| Number of entries per archive | 20 000 |
| Message archive | Yes |
| Process value archive | Yes |
| — Sequential archive | Yes |
| — Short-term archive | Yes |
| — Memory card | Yes |
| — USB memory | Yes |
| — Ethernet | Yes |
| — CSV | Yes |
| — TXT | Yes |
| — RDB | Yes |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Number of users | 50 |
| Password export/import | Yes |
| SIMATIC Logon | Yes |
| Alarms | Yes |
| Report (shift log) | Yes |
| Hardcopy | Yes |
| Electronic print to file | Yes; PDF, HTML |
| — US English | Yes |
| MPI/PROFIBUS DP | Yes |
| USB | Yes |
| Ethernet | Yes |
| using external storage medium | Yes; Backup/restore |
| S7-1200 | Yes |
| S7-1500 | Yes |
| S7-200 | Yes |
| S7-300/400 | Yes |
| LOGO! | Yes |
| WinAC | Yes |
| SINUMERIK | Yes; with SINUMERIK option package |
| SIMOTION | Yes |
| Allen Bradley (EtherNet/IP) | Yes |
| Allen Bradley (DF1) | Yes |
| Mitsubishi (MC TCP/IP) | Yes |
| Mitsubishi (FX) | Yes |
| OMRON (FINS TCP) | No |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus TCP/IP) | Yes |
| Modicon (Modbus) | Yes |
| OPC UA Client | Yes |
| OPC UA Server | Yes |
| Backup/Restore manually | Yes |
| Backup/Restore automatically | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Printer | Yes |
| SIMATIC HMI MM memory card: Multi Media Card | Yes |
| SIMATIC HMI SD memory card: Secure Digital memory card | Yes |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes; e.g. USB RFID reader, see FAQ entry ID: 99808171 |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes |
| SIMATIC HMI USB stick | Yes |
| Network camera | Yes; See FAQ Entry ID: 62383298 and entry ID: 65647473 |
| Expansion module | Optional e.g. USB RFID reader, see FAQ entry ID: 99808171 |
| Further accessories are available | Yes; Mounting clips and 2-pin power supply connector |
| Plastic | No |
| Aluminum | Yes; Powder-coated, UV resistant |
| Stainless steel | No |
| Width of the housing front | 214 mm |
| Height of housing front | 158 mm |
| Mounting cutout, width | 198 mm |
| Mounting cutout, height | 142 mm |
| mounting depth | 64.6 mm |
| Weight (without packaging) | 1.5 kg |
| Weight (with packaging) | 1.7 kg |
| Note: | Power, quantity structure and performance correspond to a standard 7" Comfort Panel |
