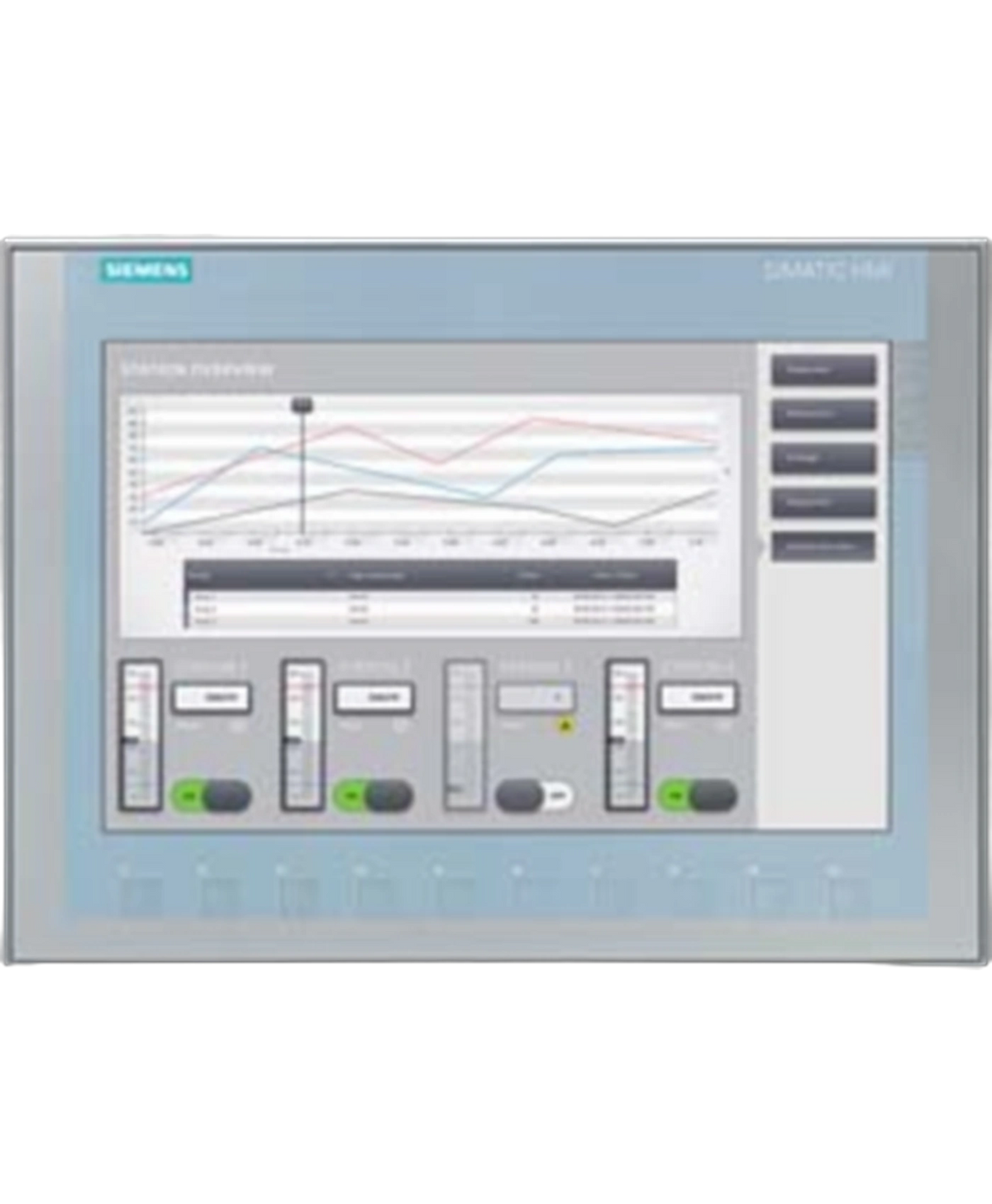

Siemens 6AV2123-2MB03-0AX0
The 6AV2123-2MB03-0AX0 model from Siemens is an HMI panel that features a 12-inch screen. It operates through both key and touch inputs, and the TFT display supports up to 65,000 colors with a resolution of 1280 x 800 pixels.
Brand New - 12 Months Warranty
$1,834.63
(inc. GST)
In Stock
| Product type designation | KTP1200 Basic color PN |
| Design of display | TFT widescreen display, LED backlighting |
| Screen diagonal | 12 in |
| Display width | 261.1 mm |
| Display height | 163.2 mm |
| Number of colors | 65 536 |
| Horizontal image resolution | 1 280 pixel |
| Vertical image resolution | 800 pixel |
| MTBF backlighting (at 25 °C) | 20 000 h |
| Backlight dimmable | Yes |
| — Number of function keys | 10 |
| — Number of function keys with LEDs | 0 |
| Keys with LED | No |
| System keys | No |
| Numeric keyboard | Yes; Onscreen keyboard |
| alphanumeric keyboard | Yes; Onscreen keyboard |
| Design as touch screen | Yes; Analog-resistive |
| Mounting position | vertical |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 510 mA |
| Starting current inrush I²t | 0.2 A²·s |
| Active power input, typ. | 12.2 W |
| Processor type | ARM |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 10 Mbyte |
| Buzzer | Yes |
| Speaker | No |
| Hardware clock (real-time) | Yes |
| Software clock | Yes |
| retentive | Yes; Back-up duration typically 6 weeks |
| synchronizable | Yes |
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 0 |
| Number of RS 422 interfaces | 0 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 1; Up to 16 GB |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 0 |
| With software interfaces | No |
| Industrial Ethernet status LED | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | No |
| IRT | No |
| PROFIBUS | No |
| EtherNet/IP | Yes |
| MPI | No |
| TCP/IP | Yes |
| DHCP | Yes |
| DCP | Yes |
| LLDP | Yes |
| HTTP | No |
| HTML | No |
| — MRP | No |
| CAN | No |
| MODBUS | Yes; Modicon (MODBUS TCP/IP) |
| Diagnostic information readable | No |
| Limit class A, for use in industrial areas | Yes |
| Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Enclosure Type 4 at the front | Yes |
| Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| ATEX Zone 2 | No |
| ATEX Zone 22 | No |
| IECEx Zone 2 | No |
| IECEx Zone 22 | No |
| cULus Class I Zone 1 | No |
| cULus Class I Zone 2, Division 2 | No |
| FM Class I Division 2 | No |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (Class NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| Chinese Classification Society (CCS) | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 50 °C40 °C |
| — At maximum tilt angle, min. | 0 °C |
| — At maximum tilt angle, max. | 40 °C35 °C |
| min. | -20 °C |
| max. | 60 °C |
| Operation, max. | 90 %; no condensation |
| proprietary | Yes |
| Windows CE | No |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| STEP 7 Basic (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| STEP 7 Professional (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| WinCC flexible Compact | No |
| WinCC flexible Standard | No |
| WinCC flexible Advanced | No |
| WinCC Basic (TIA Portal) | Yes |
| WinCC Comfort (TIA Portal) | Yes |
| WinCC Advanced (TIA Portal) | Yes |
| WinCC Professional (TIA Portal) | Yes |
| Number of online/runtime languages | 10 |
| Languages per project | 32 |
| Libraries | Yes |
| Web browser | Yes |
| SIMATIC WinCC Sm@rtServer | Yes; Available with WinCC (TIA Portal) V14 or higher |
| Number of Visual Basic Scripts | No |
| Task planner | Yes |
| time-controlled | No |
| task-controlled | Yes |
| Help system | Yes |
| Number of characters per info text | 500 |
| Number of alarm classes | 32 |
| — Number of bit messages | 1 000 |
| — Number of analog messages | 25 |
| S7 alarm number procedure | No |
| System messages HMI | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes; System message buffer of the SIMATIC S7-1200 and S7-1500 |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| — Number of entries | 256 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| Number of recipes | 50 |
| Data records per recipe | 100 |
| Entries per data record | 100 |
| Size of internal recipe memory | 256 kbyte |
| Recipe memory expandable | No |
| Number of variables per device | 800 |
| Number of variables per screen | 100 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | No |
| Arrays | Yes |
| Number of configurable images | 250 |
| Permanent window/default | Yes |
| Global image | Yes |
| Pop-up images | No |
| Slide-in images | No |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Number of objects per image | 100 |
| Text fields | Yes |
| I/O fields | Yes |
| Graphic I/O fields (graphics list) | Yes |
| Symbolic I/O fields (text list) | Yes |
| Date/time fields | Yes |
| Switches | Yes |
| Buttons | Yes |
| Graphic display | Yes |
| Icons | Yes |
| Geometric objects | Yes |
| Number of complex objects per screen | 10 |
| Alarm view | Yes |
| Trend view | Yes |
| User view | Yes |
| Status/control | No |
| Sm@rtClient view | No |
| Recipe view | Yes |
| f(x) trend view | No |
| System diagnostics view | Yes; System message buffer of the SIMATIC S7-1200 and S7-1500 |
| Media Player | No |
| HTML browser | Yes |
| PDF display | No |
| IP camera display | No |
| Bar graphs | Yes |
| Sliders | No |
| Pointer instruments | No |
| Analog/digital clock | No |
| Number of text lists per project | 300 |
| Number of entries per text list | 100 |
| Number of graphics lists per project | 100 |
| Number of entries per graphics list | 100 |
| Number of archives per device | 2; One message and one process value archive |
| Number of entries per archive | 10 000 |
| Message archive | Yes |
| Process value archive | Yes |
| — Sequential archive | Yes |
| — Short-term archive | Yes |
| — Memory card | No |
| — USB memory | Yes |
| — Ethernet | No |
| — CSV | No |
| — TXT | Yes |
| — RDB | No |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Number of users | 50 |
| Password export/import | Yes |
| SIMATIC Logon | No |
| — US English | Yes |
| MPI/PROFIBUS DP | No |
| USB | No |
| Ethernet | Yes |
| using external storage medium | Yes |
| S7-1200 | Yes |
| S7-1500 | Yes |
| S7-200 | Yes |
| S7-300/400 | Yes |
| LOGO! | Yes |
| WinAC | Yes |
| SINUMERIK | Yes; No access to NCK data |
| SIMOTION | Yes |
| Allen Bradley (EtherNet/IP) | Yes |
| Allen Bradley (DF1) | No |
| Mitsubishi (MC TCP/IP) | Yes |
| Mitsubishi (FX) | No |
| OMRON (FINS TCP) | No |
| OMRON (LINK/Multilink) | No |
| Modicon (Modbus TCP/IP) | Yes |
| Modicon (Modbus) | No |
| Backup/Restore manually | Yes |
| Backup/Restore automatically | No |
| Simulation | Yes |
| Device switchover | Yes |
| Printer | No |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes |
| SIMATIC HMI USB stick | Yes |
| Plastic | Yes |
| Aluminum | No |
| Stainless steel | No |
| Width of the housing front | 330 mm |
| Height of housing front | 245 mm |
| Mounting cutout, width | 310 mm |
| Mounting cutout, height | 221 mm |
| mounting depth | 54.9 mm |
| Weight (without packaging) | 1 710 g |
| Weight (with packaging) | 2.2 kg |
